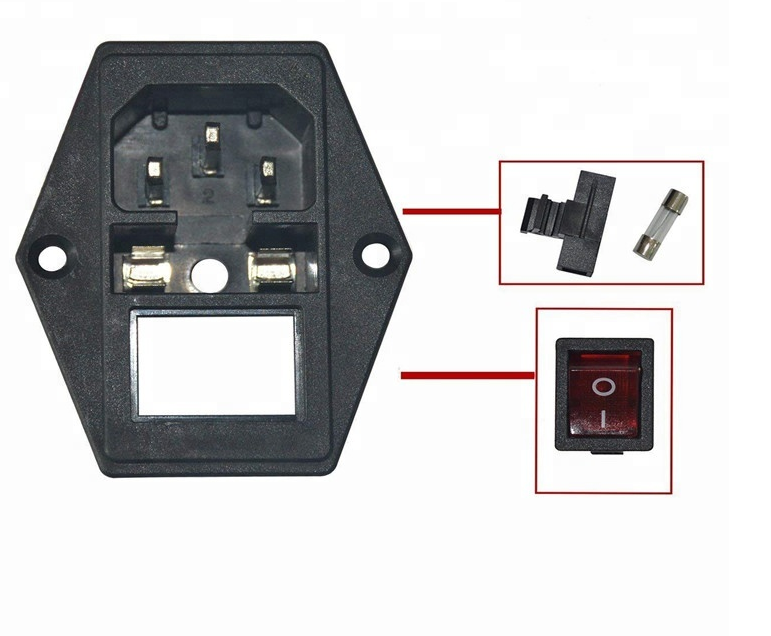

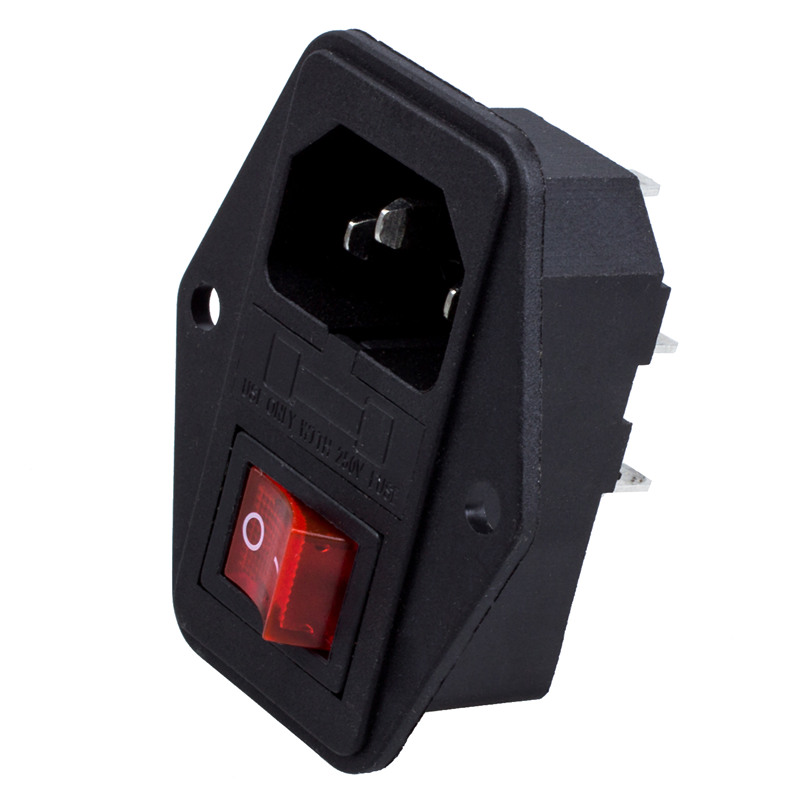

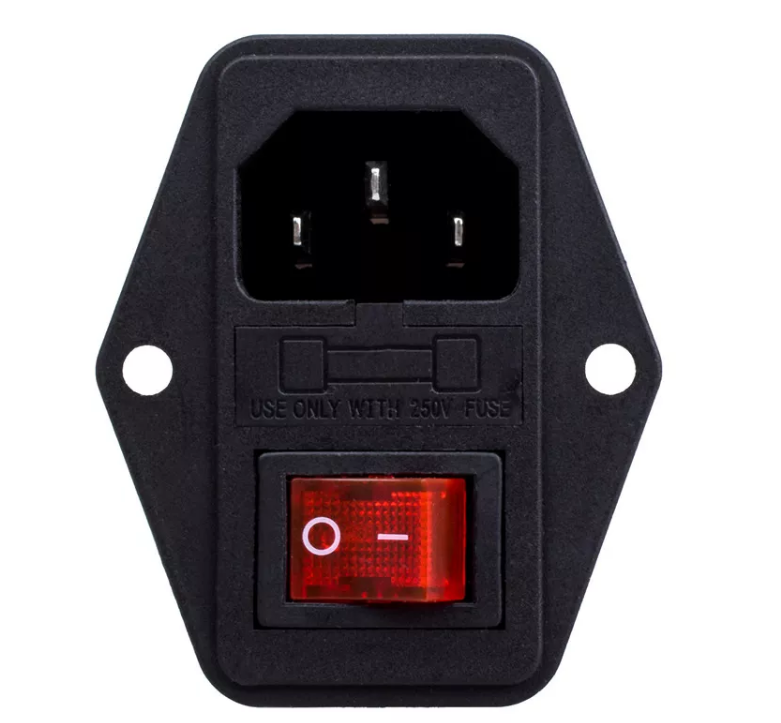

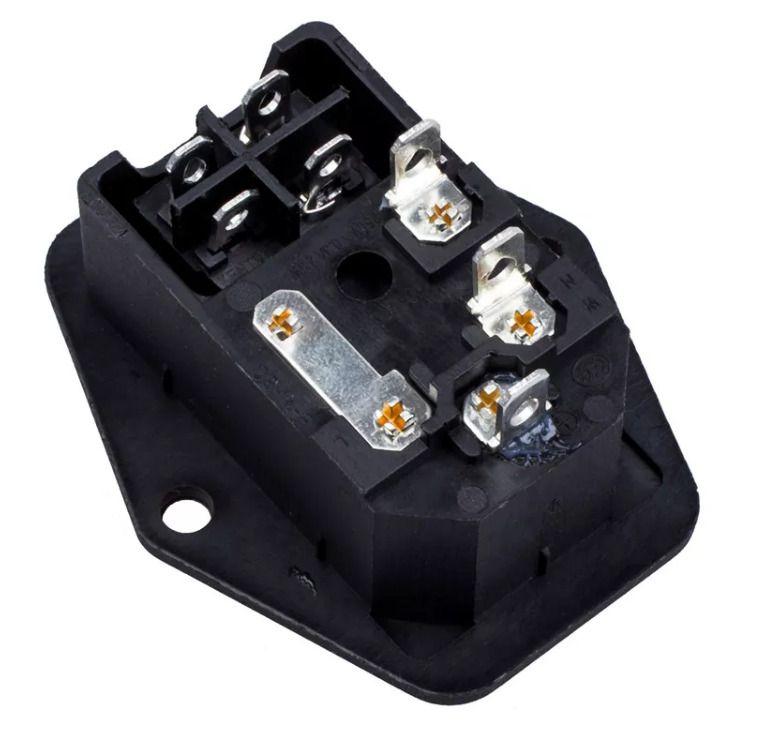

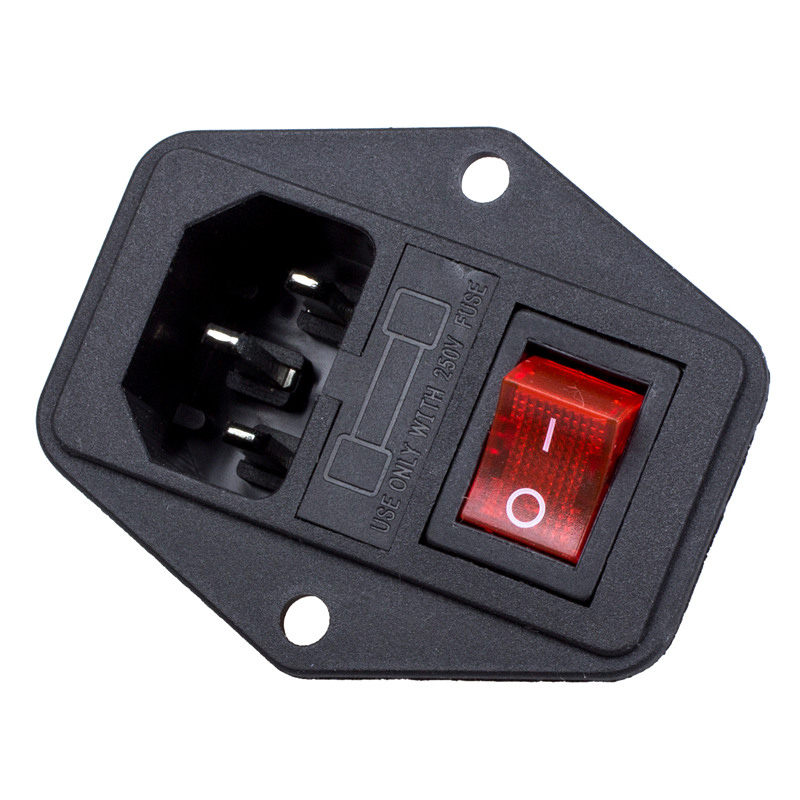

Parts & Accessories - Three In One Socket
Specification:
Material: Plastic conductive metal
Color: Black
Rated Voltage: 250V AC
Rated Current: 10A
Jack Type: 3 pin
Resistance of Contact is Less than or equal to 0.03Mohm
Resistance of Insulation is Greater than or equal to 100Mohm
Service Time:Great than or equal to 10,000 times
Withstand Voltage Strength: 2000VAC/Min.
For 5*20 fuses (250V only)

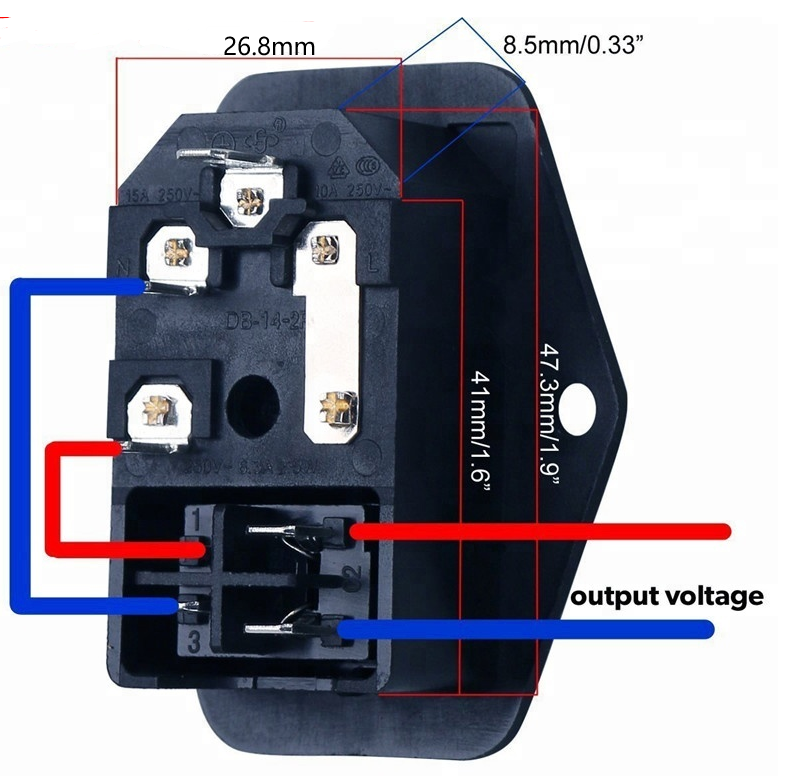

Fuse Holder: Approx. 0.22*0.09inch/0.55*0.22cm
Whole Size: Approx. 2.28*1.93*1.18inch/5.8*4.9*3cm
Mounting Hole Diameter: Approx. 0.18inch/0.45cm
Mounting Hole Center to Center Distance: Approx. 1.57inch/4cm
