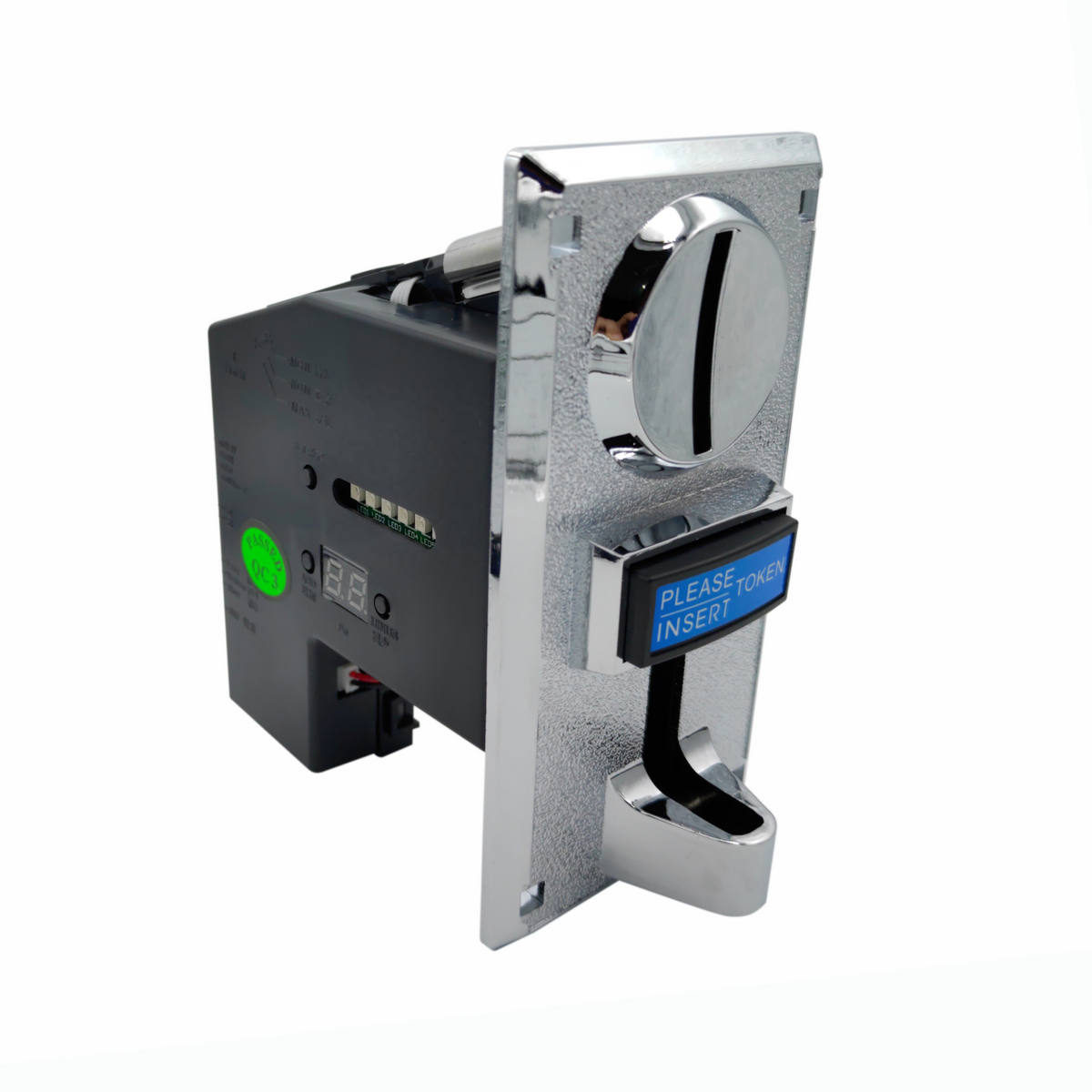

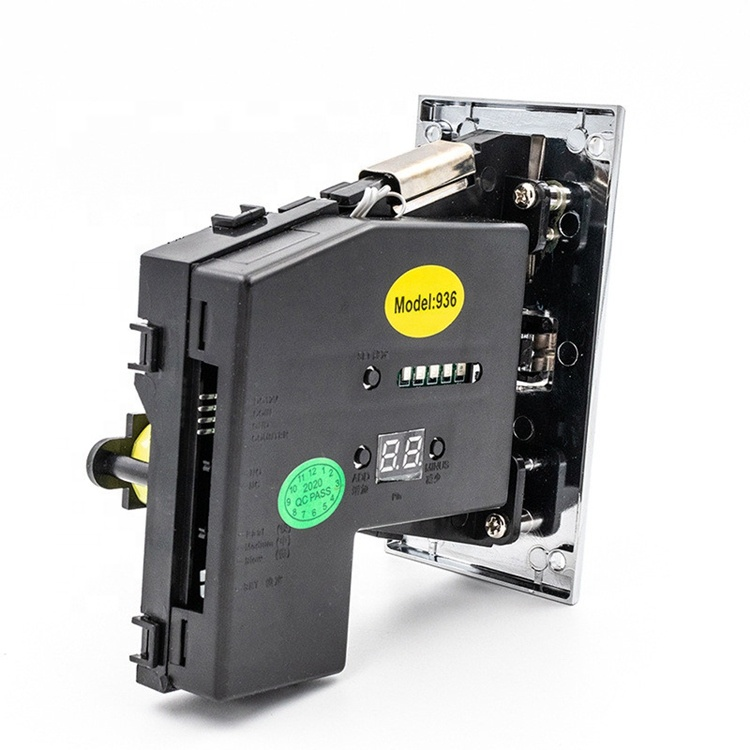

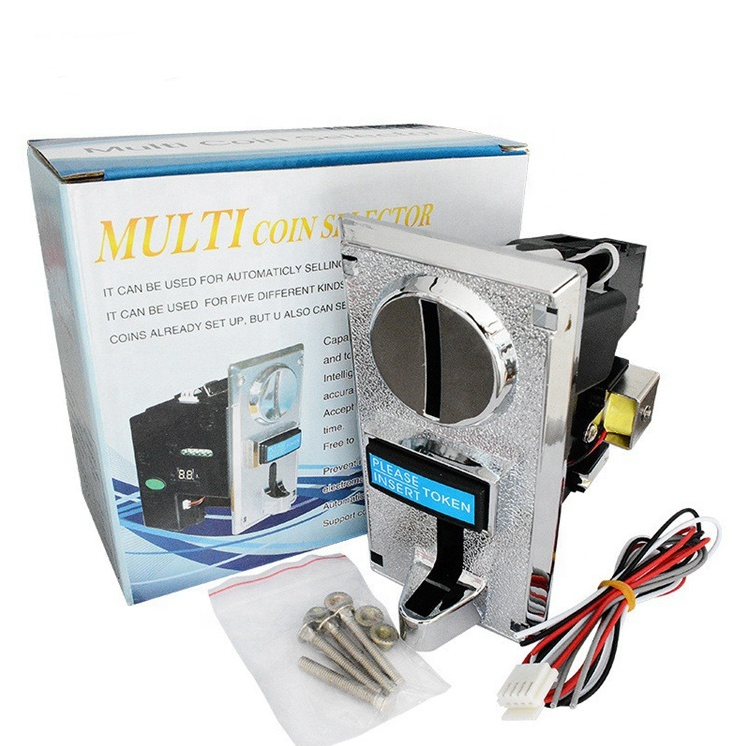

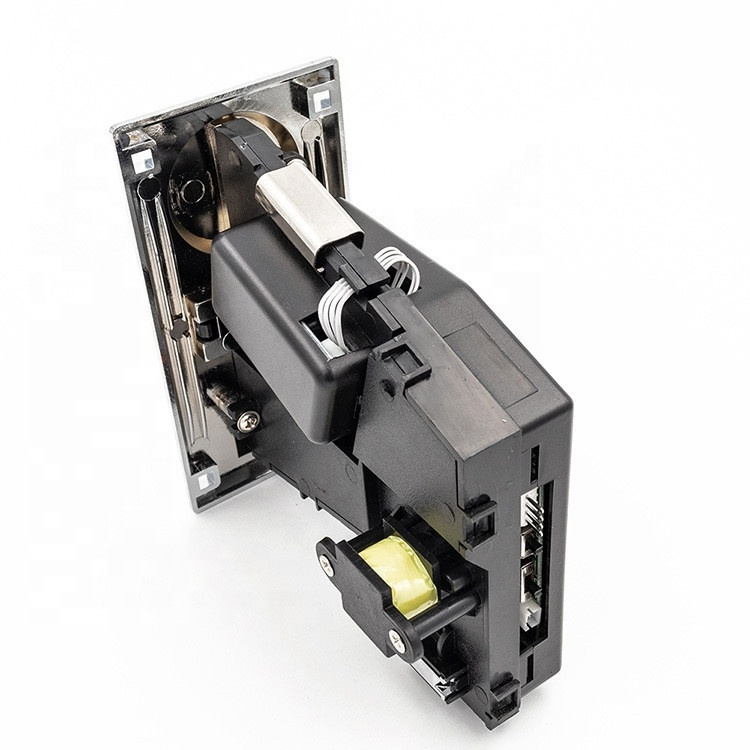

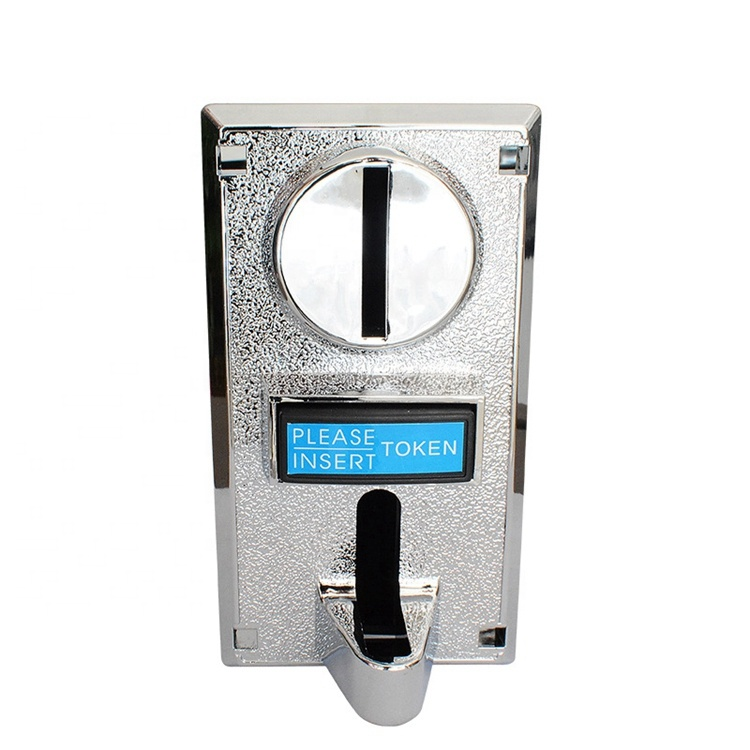

Multi-Coin Acceptor

Specification:

Product number：EL-A001
Item name:Multi coin selector
Working voltage:DC +12V±10%
Size:155x70x130(mm)
Working temperature:-10℃~+60℃
Diameter of coin:15mm~29mm
Thickness of coin:1.8mm~3.0mm
Coin signal output:O.C.(open collector)
Working current:50mA
Working life:80,000 times
Identify accuracy rate:95%

Methods for setting coin samples:

1.Pressing the setting key, the letter A is shown. Then press the setting key again, the letter A1 is shown, and the first LED light is always on, so at this moment, inputting 20 first sample coins by constant velocit,(When the setting numberial value of H 1 is 20)
2.After inputting the coins, LED lights will flicker, when the letter A2 is shown and the first two LED lights are on, please inputting 20 second sample coins by constant velocit.(When the setting numberial value of H 2 is 20)
3.After inputting the coins, LED lights will flicker. When the letter A3 is shown and the first three LED lights are on, please inputting 20 third sample coins by constant velocit.(When the setting numberial value of H 3 is 20). By parity of reasoning, please finish the setting. After finishing setting all the needed numberial value coins, all the LED lights will ficker several times, it can be used normally.

Product Details:

1.It can be used for automaticly selling system.
2.It can be used for five different kinds of coins(1 peso/5peso/10peso coins already set up, but you also can set up yourself easily).
