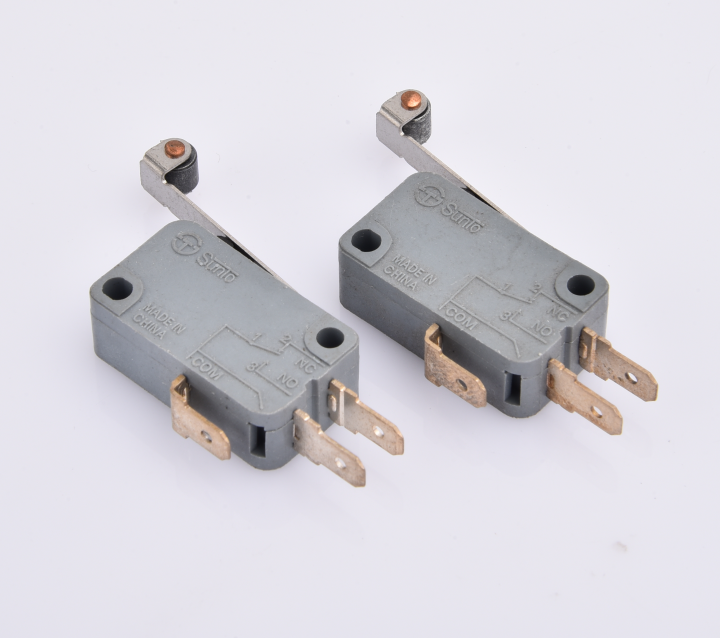

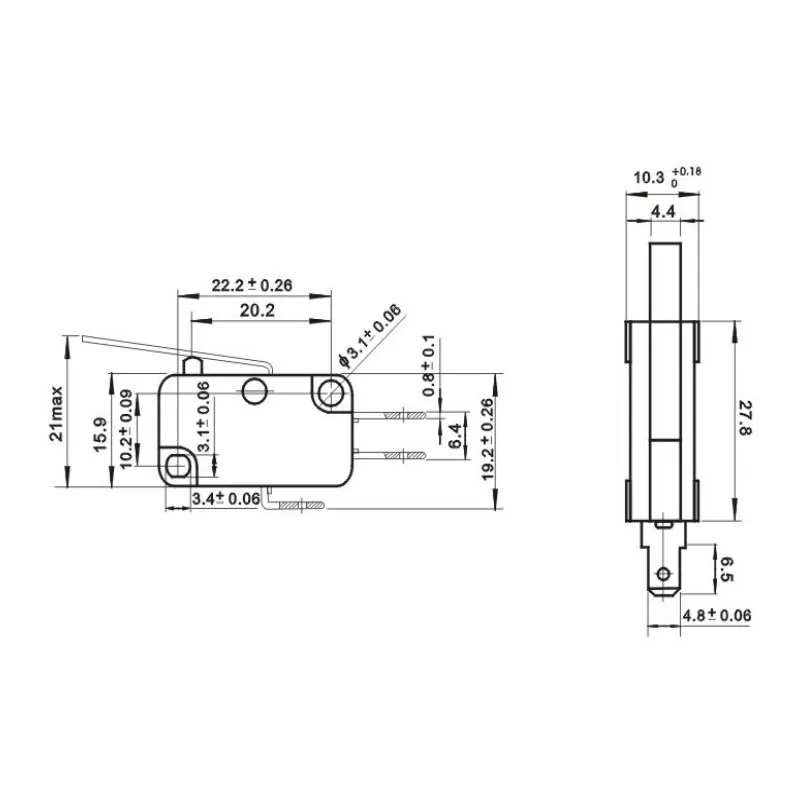

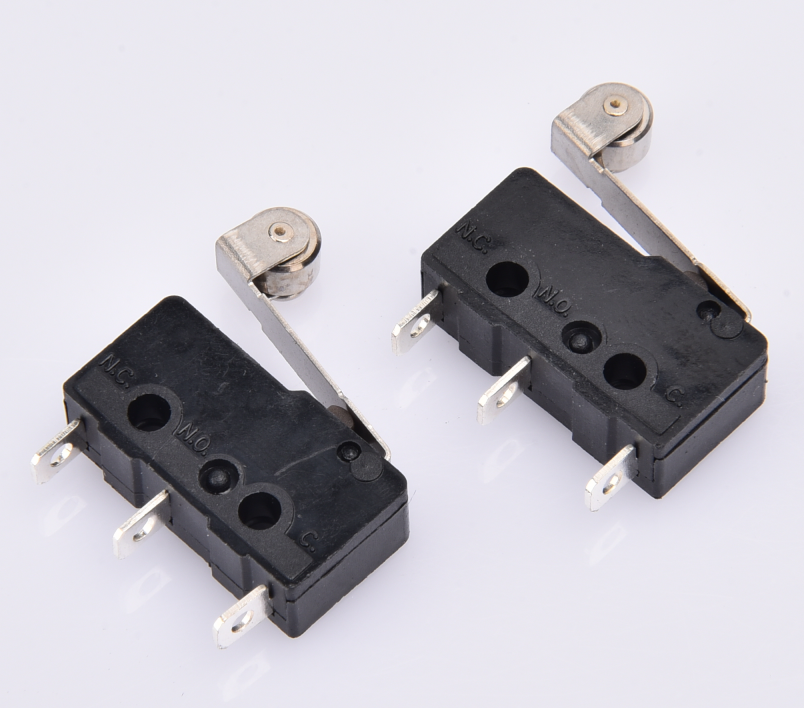

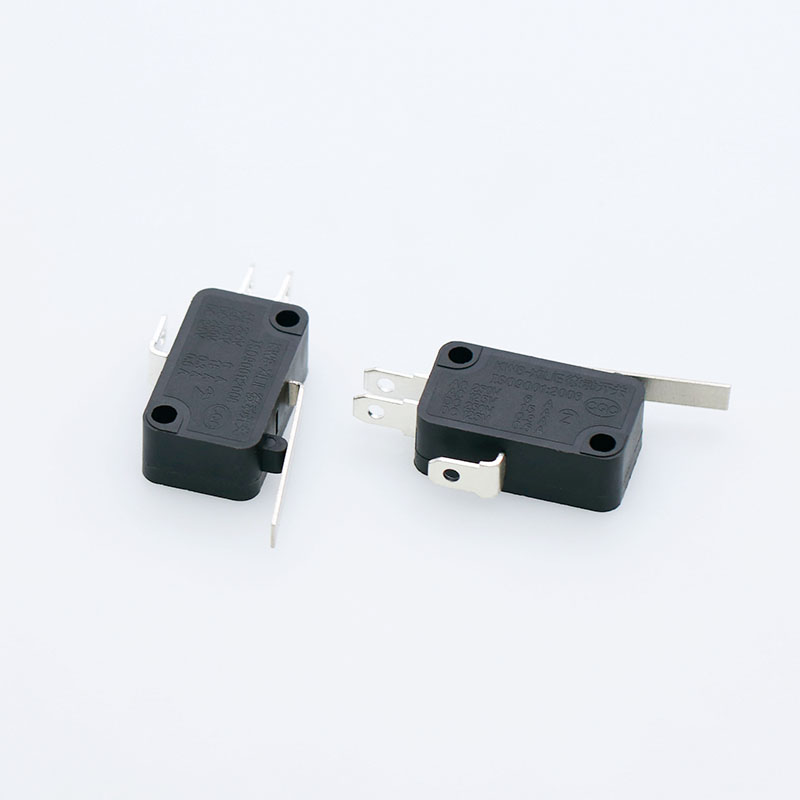

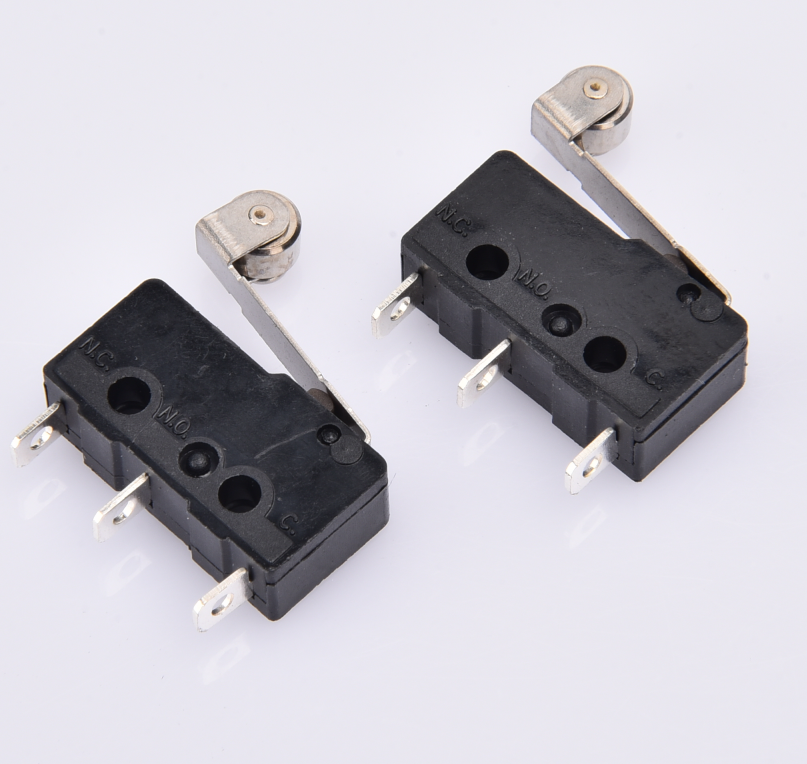

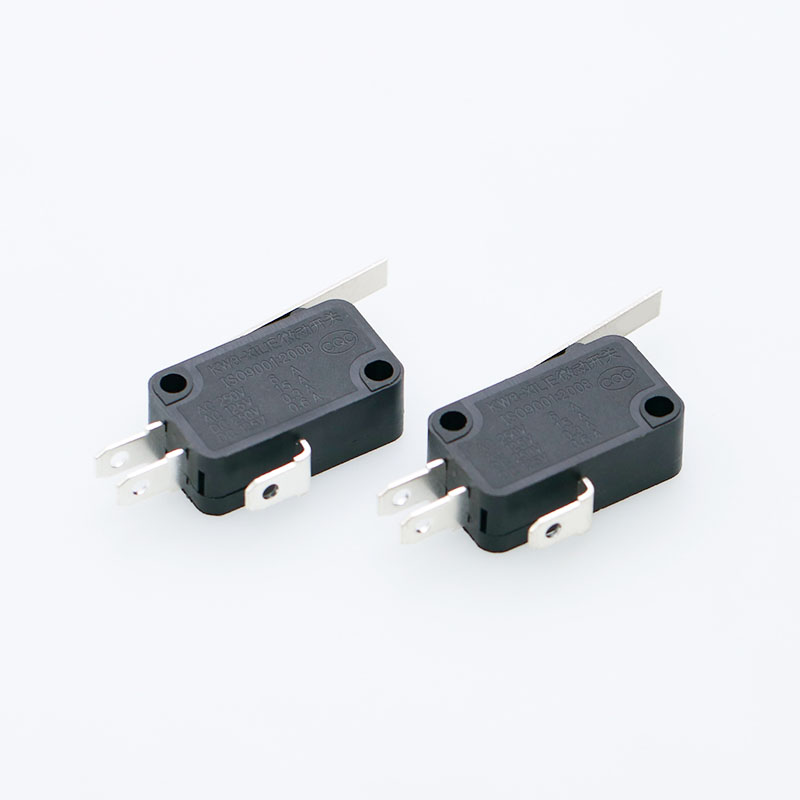

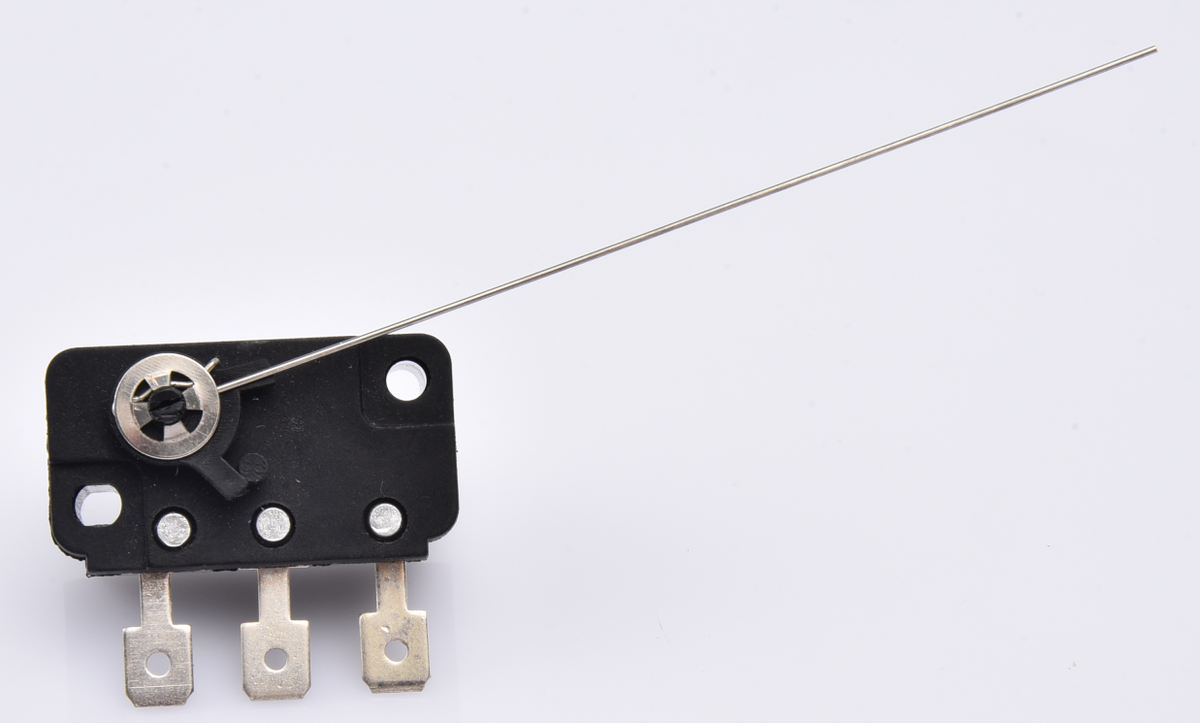

Micro Switch

Specification:

Rated Load:0.1A 60V DC AC 250V 0.5A
Contact Resistance:≤0.02Ω
Mechanical Life:1000000 Times
Insulation Resistance:≥100M Ω
Actuating Force:60±100gf
Material:PC

Features:

1.2 terminals
2.Auxiliary Actuator (36.00mm)
3.Suitable for most type push buttons
4.Maximum rating: 6A, 125/250VAC
5.Mechanical life: minimum 5,000,000 cycles
6.Electronic life: minimum 500,000 cycles
7.Durable white plastic cover
8.Highly flexible switch capacity
